Network service on Compute node

Neutron is the Openstack Network Service

This page is built by combining three different Openstack docs pages

https://docs.openstack.org/neutron/2025.1/install/compute-install-ubuntu.html

https://docs.openstack.org/neutron/2025.1/admin/deploy-ovs-provider.html

https://docs.openstack.org/neutron/2025.1/install/compute-install-option1-ubuntu.html

Provider network option

This guide is built on the basis of working with Provider network option, the easiest option.

Pre req

Note that this guide assumes that two network interfaces are available on the host, and that the interface to be used as the "provider" interface is not in use, is connected to a switch on a trunk port

Install Neutron packages

sudo apt update
sudo apt install neutron-openvswitch-agent neutron-dhcp-agent neutron-metadata-agent

This installs the required openvswitch packages as well as the dhcp and metadata agent packages

Configuration

There's multiple configuration files

/etc/neutron/neutron.conf

/etc/neutron/dhcp_agent.ini

/etc/neutron/plugins/ml2/openvswitch_agent.ini

/etc/neutron/metadata_agent.ini

Do NOT restart the services before explicitly instructed in this guide

neutron.conf file

/etc/neutron/neutron.conf

[DEFAULT]
core_plugin = ml2
auth_strategy = keystone
transport_url = rabbit://openstack:Passw0rd!@os-control

[oslo_concurrency]
lock_path = /var/lib/neutron/tmp

[agent]
root_helper = "sudo /usr/bin/neutron-rootwrap /etc/neutron/rootwrap.conf"

[database]
#connection = sqlite:////var/lib/neutron/neutron.sqlite

Note that the connection line under [database] has been commented out

dhcp_agent.ini

/etc/neutron/dhcp_agent.ini

[DEFAULT]
enable_isolated_metadata = True
force_metadata = True

openvswitch_agent.ini

/etc/neutron/plugins/ml2/openvswitch_agent.ini

[ovs]
bridge_mappings = provider:br-provider

[securitygroup]
enable_security_group = true
firewall_driver = openvswitch

metadata_agent.ini

/etc/neutron/metadata_agent.ini

[DEFAULT]
nova_metadata_host = os-control
metadata_proxy_shared_secret = Passw0rd!

Configure OVS bridge for Provider network

At this point our ovs config should show something like this

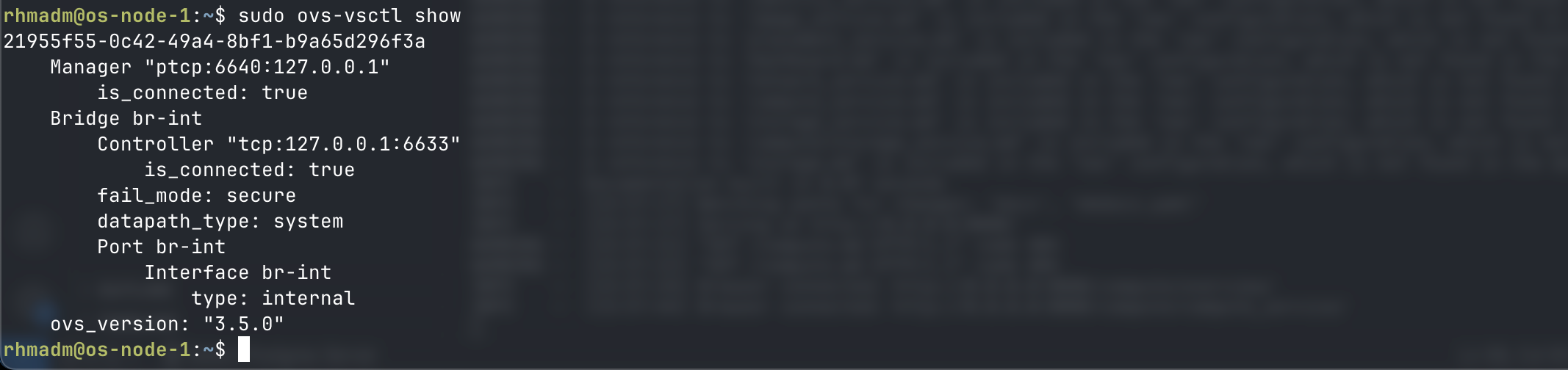

OVS config clean

Next step will be to add a bridge for the provider network and add the free network interface to this bridge

sudo ovs-vsctl add-br br-provider
sudo ovs-vsctl add-port br-provider <INTERFACE_NAME>

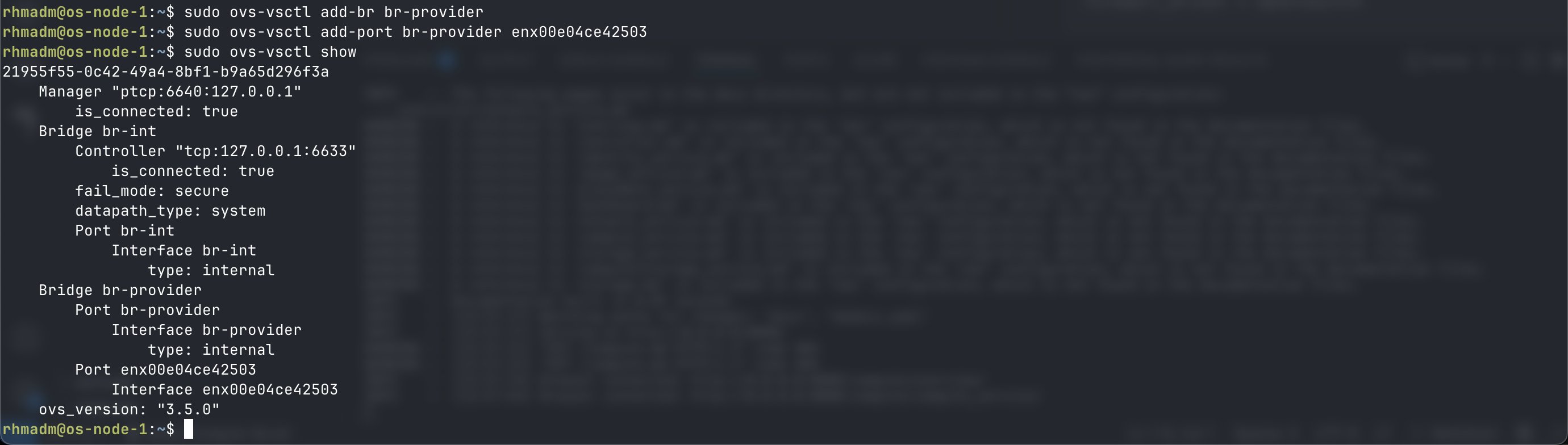

OVS bridges updated

Start neutron services

Now we can go ahead and restart the Neutron services

sudo systemctl restart neutron-openvswitch-agent.service

And now we can go back and check our OVS config and see that the bridges has more ports attached. These are added by Neutron for it to be able to stitch things together

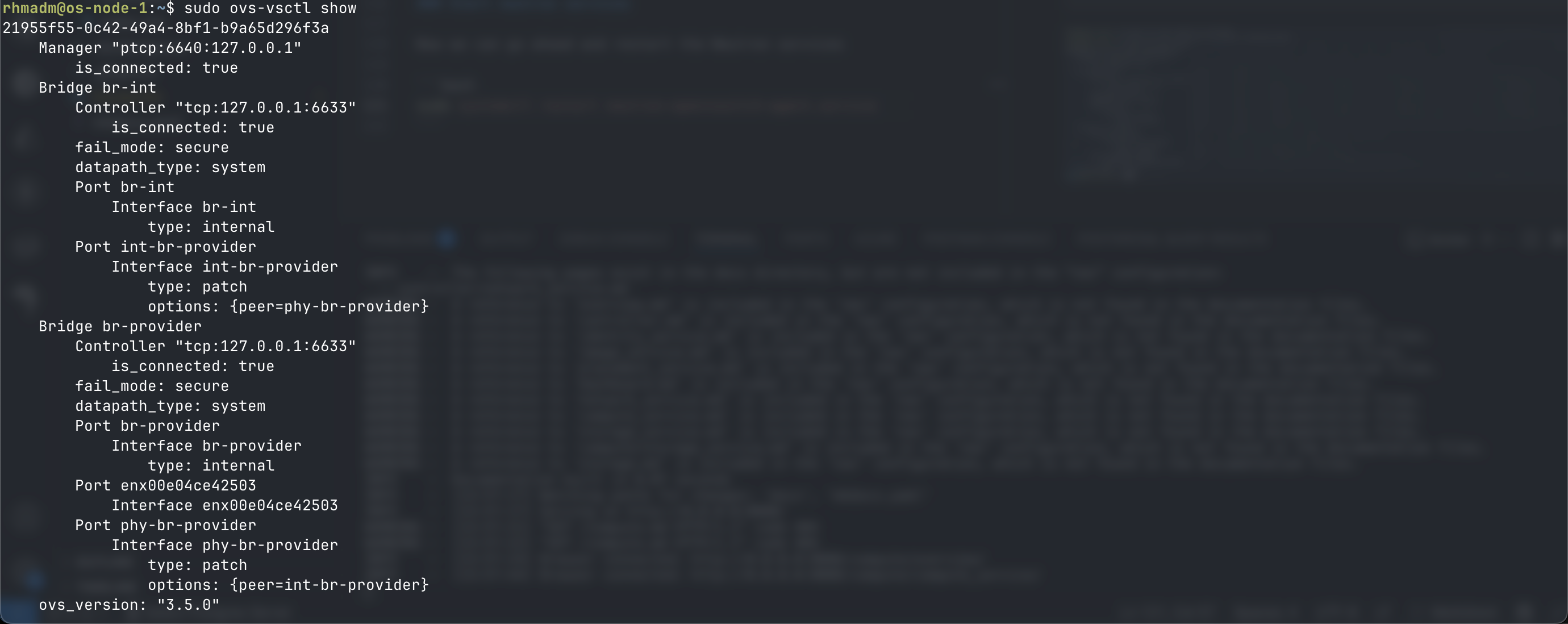

Updated OVS config with patch ports

Restart the dhcp and metadata agent services

sudo systemctl restart neutron-dhcp-agent
sudo systemctl restart neutron-metadata-agent

Check status

Let's check the status of the two neutron services

sudo journalctl -u neutron-dhcp-agent.service -f
sudo journalctl -u neutron-openvswitch-agent.service -f

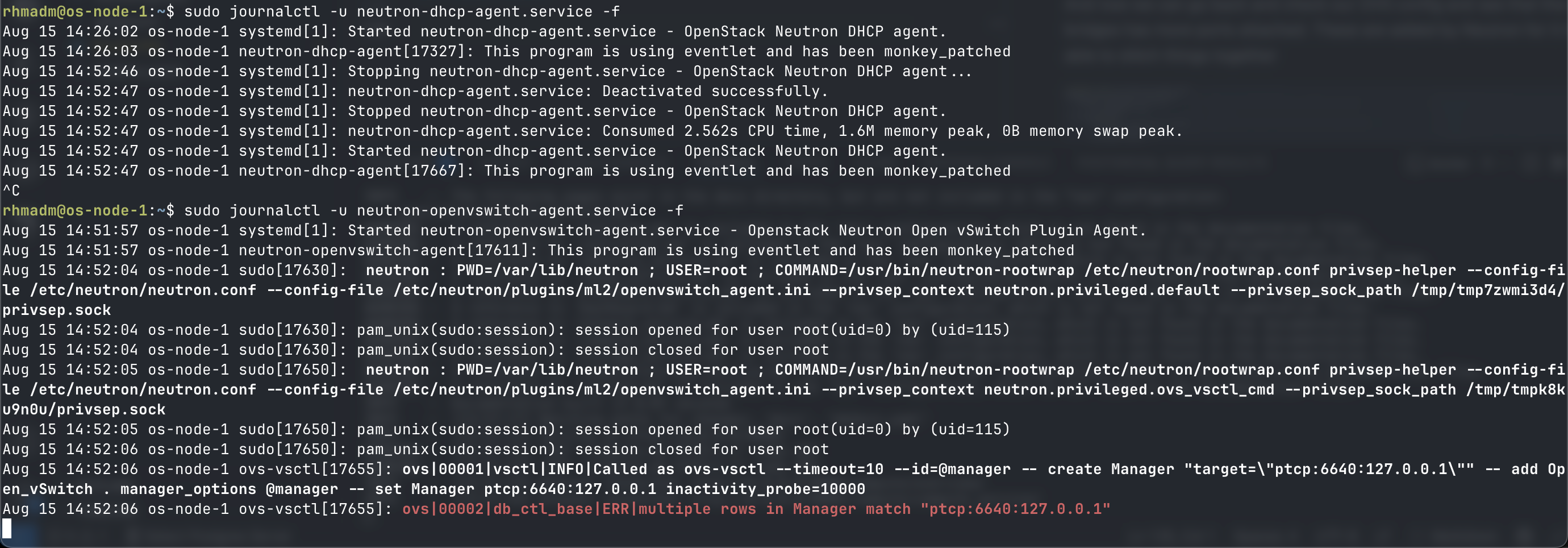

Neutron service status

The error message from the openvswitch-agent service is currently something we're investigating. It seems to not interfere with the network operation

We'll also check the status from our controller node

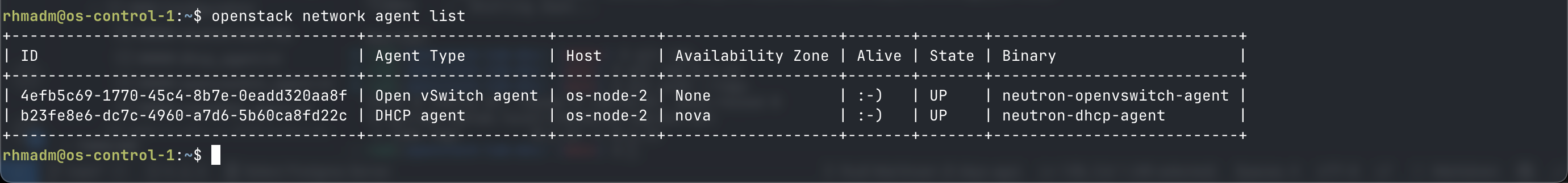

Network agent list

Note that we've not mentioned the metadata agent service. We're currently not utilizing that
