Overview

This guide is based on Ubuntu 24.04.2

Management IP

/etc/netplan/10-static.yaml

network:
  version: 2
  renderer: networkd
  ethernets:
    eno1:
      dhcp4: false
  vlans:
    vlan120:
      id: 120
      link: eno1
      addresses:
        - 192.168.120.201/24
      routes:
        - to: default
          via: 192.168.120.1
      nameservers:
        addresses:
          - 192.168.100.11
        search:
          - rhmlab.local

OS configs

NTP

For NTP setup please refer to the generic NTP config page

Name resolution

For name resolution setup please refer to the generic Name resolution page

Provider network

The compute node needs to have a interface available for the Provider network

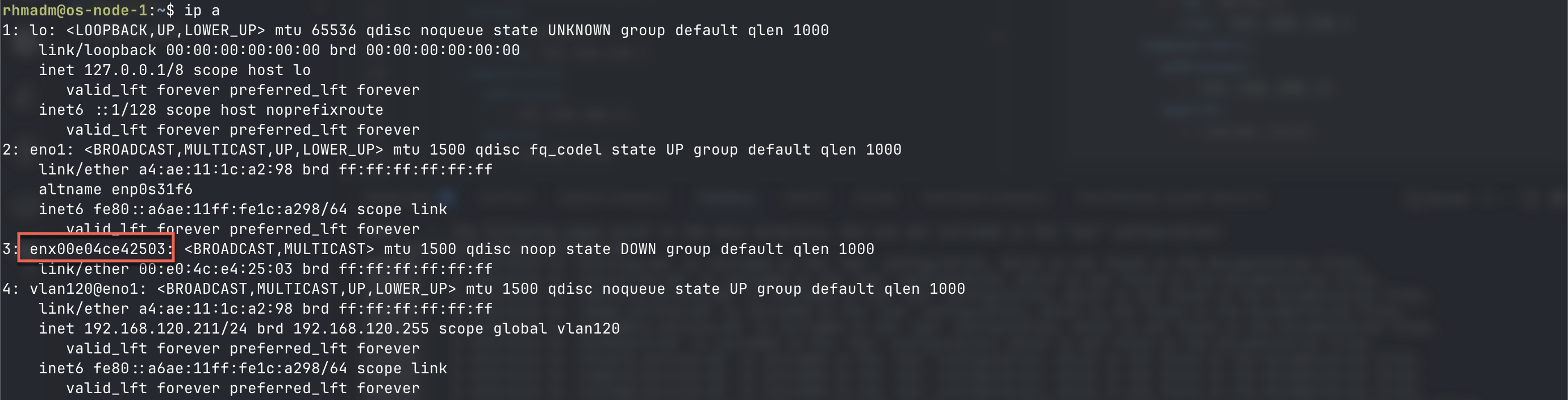

ip a

Note the free interface. We'll add it to our netplan config with no IP and set the dhcp4 to false

/etc/netplan/10-static.yaml

network:
  version: 2
  renderer: networkd
  ethernets:
    eno1:
      dhcp4: false
    enx00e04ce42503:
      dhcp4: false
  vlans:
    vlan120:
      id: 120
      link: eno1
      addresses:
        - 192.168.120.201/24
      routes:
        - to: default
          via: 192.168.120.1
      nameservers:
        addresses:
          - 192.168.100.11
        search:
          - rhmlab.local
